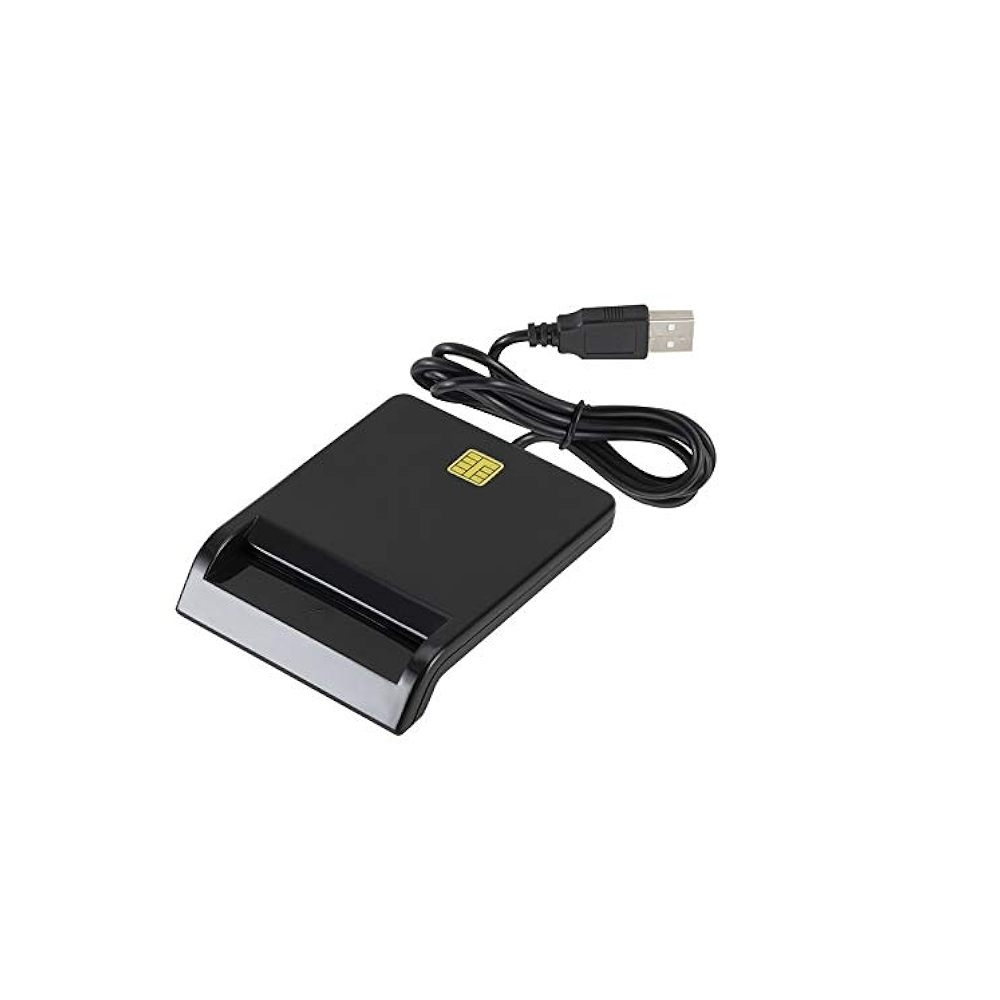

Token2 Desktop USB Contact IC Chip Reader

  shipping costs will be calculated at the checkout page

Reliable stationary smart card reader for secure contact chip card operations. The Token2 Desktop USB Contact IC Chip Reader is a robust, full-size smart card reader built for comfortable, frequent use at workstations, offices, and service counters. With its stable angled design and extended cable, it provides reliable reading of contact-based smart cards in authentication, banking, government ID, and enterprise security applications.



FIDO2 over ISO 7816 (Contact IC Cards – Windows Only)
Unlike USB keys (touch the sensor) or NFC cards (tap), contact IC cards used via a smart card reader need to be removed and reinserted to complete authentication. FIDO2 over ISO 7816 has been implemented on Windows only; other operating systems are not fully supported, and we do not recommend using this device with anything other than Windows 11.
Unlike USB and NFC transports, ISO 7816 is also not supported by libfido2 or fido2-manage tools. Device management must be performed using the Token2 Companion App.

Specifications
Specification Details
Product Name Token2 Desktop USB Contact IC Chip Reader
Interface USB 2.0 (Type-A connector)

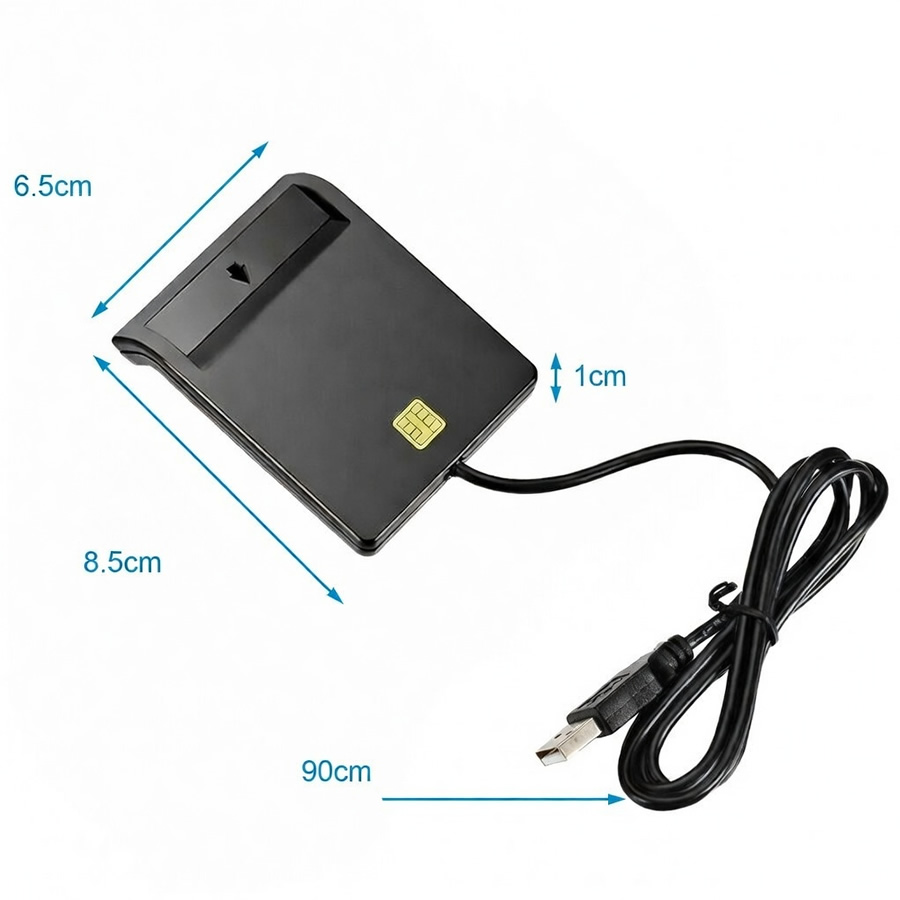

Dimensions 8.5 cm × 6.5 cm × 1 cm
Cable Length 90 cm
Card Slot Full-size contact smart card slot (ISO/IEC 7816 compliant)
Supported Cards Contact smart cards with visible IC chip (EMV bank cards, national ID cards, eID, government credentials, corporate access cards, etc.)
Unsupported Cards Contactless (NFC/RFID), pure magnetic stripe, or memory cards without microprocessor
Power Supply Bus-powered via USB (no external adapter required)
Housing Durable black ABS plastic with ergonomic raised card insertion slot
Operating Temperature 0°C to 60°C

Compatibility

Operating Systems: Windows only – plug-and-play with native Microsoft drivers.

Compatible with Windows 7, 8, 8.1, 10, 11 (32-bit & 64-bit) and Windows Server editions.

This desktop model is designed for stationary use and offers improved handling compared to mini/compact readers. It reads only contact-based smart cards with an embedded microprocessor chip.
Cards must have visible gold contacts to function correctly.
